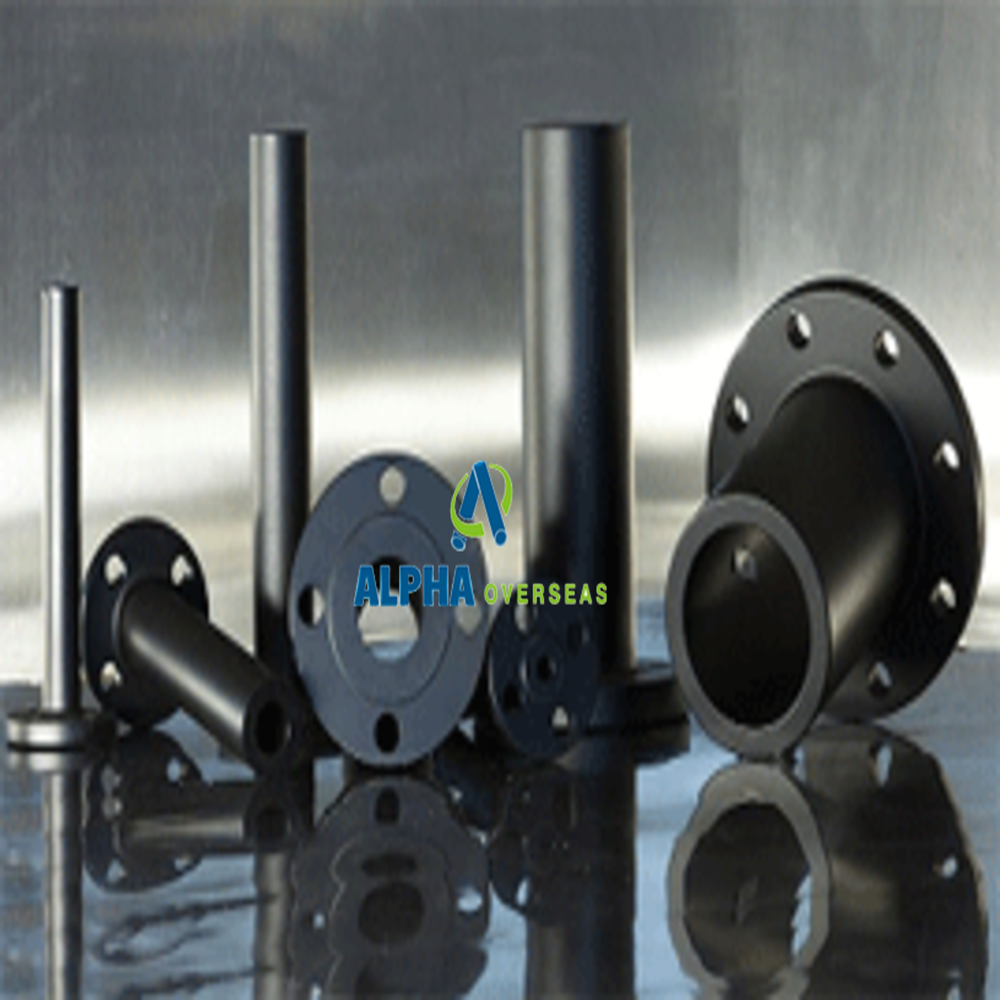

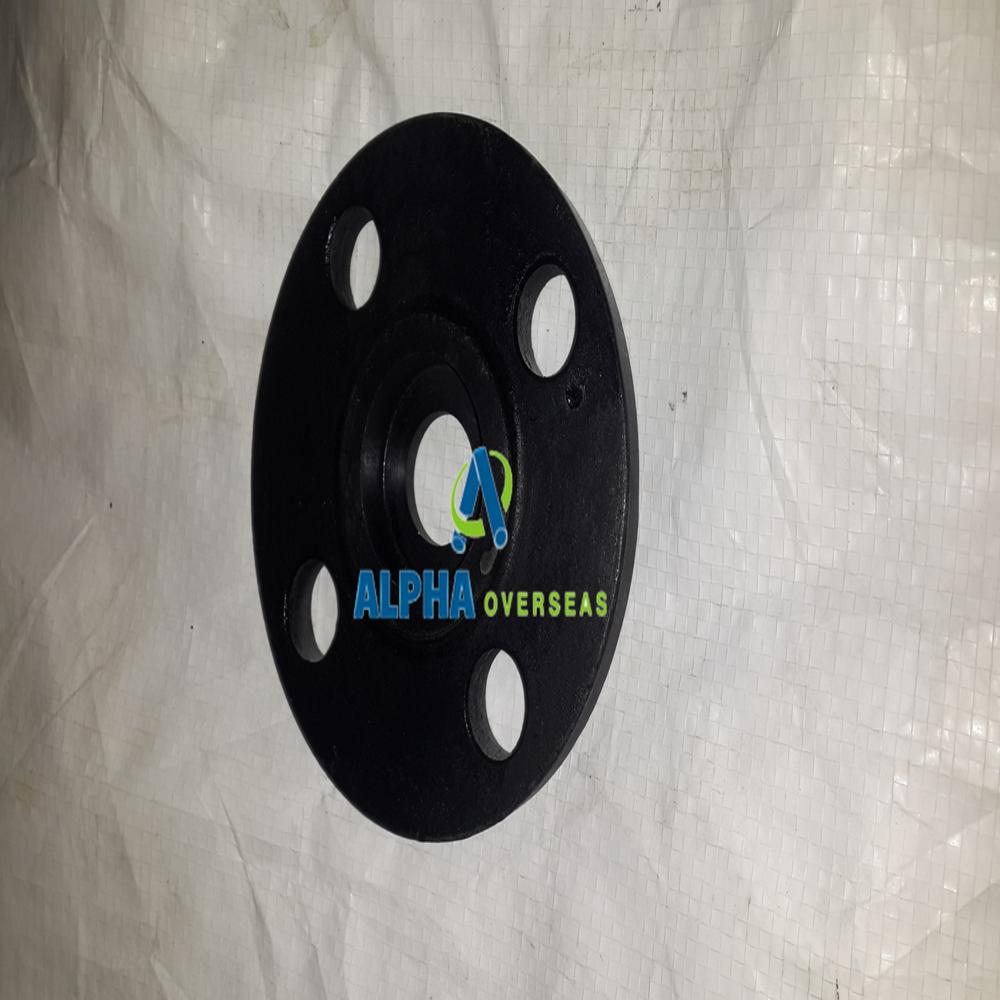

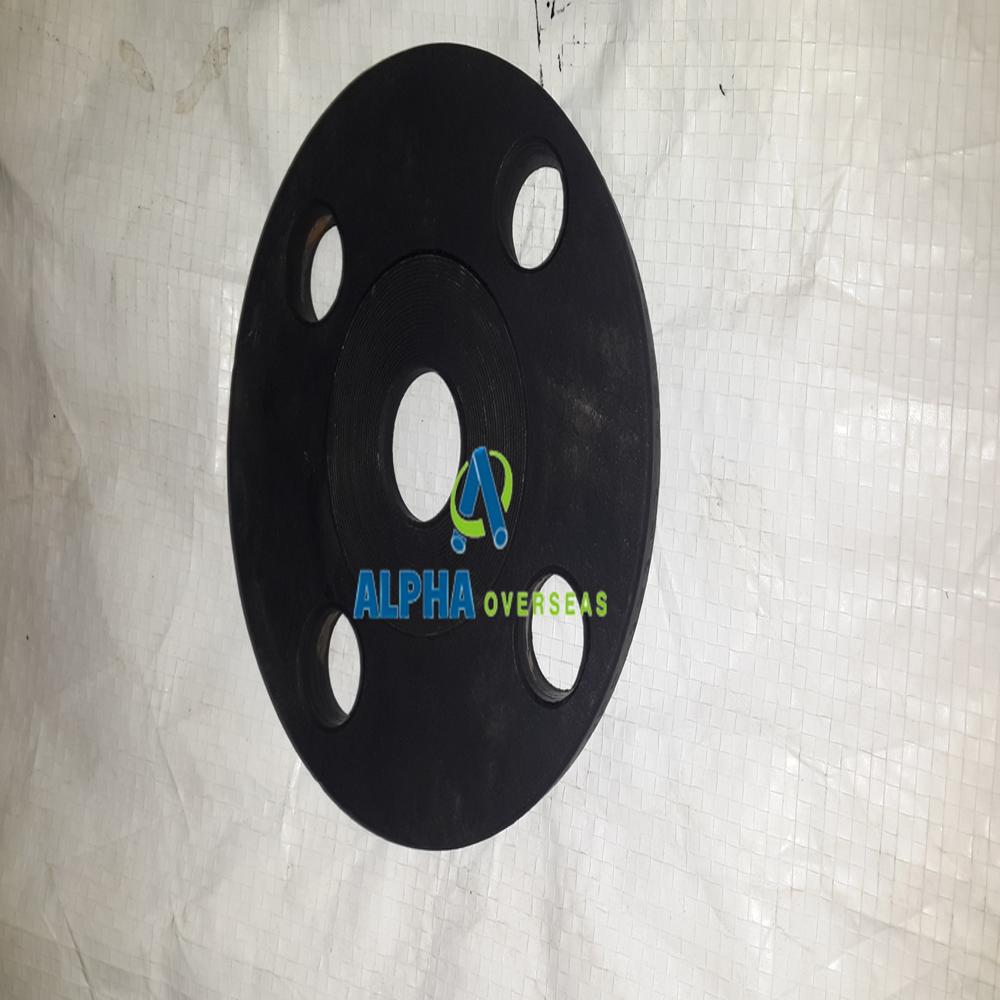

Alloy Steel F91 Slip On Flange

Price 100.0 INR/ Kilograms

Get a Price/Quote

MOQ : 100 Kilograms

Alloy Steel F91 Slip On Flange Specification

Standard
ANSI

Alloy Steel F91 Slip On Flange Trade Information

Minimum Order Quantity
100 Kilograms

Supply Ability
5000 Kilograms Per Month

Delivery Time
10 Days

About Alloy Steel F91 Slip On Flange

Discover our best-seller Alloy Steel F91 Slip On Flange, engineered for matchless performance in industrial settings. Made with impeccable stainless steel, these flanges are available in multiple grades and various sizes, each meticulously galvanized for superior corrosion resistance. As a decorated exporter, manufacturer, supplier, and trader in India, we ensure high quality and reliability. Instantly add to cart for seamless, instant checkout whether you need a single unit or bulk orders. Upgrade your operations with industry-leading standards and exceptional durability.

Features and Commercial Applications

The Alloy Steel F91 Slip On Flange boasts high-quality machinery and exceptional durability, making it ideal for demanding industrial applications. Its corrosion-resistant surface and available multiple grades ensure versatility in chemical plants, oil refineries, and energy sectors. Specifically designed for secure pipe connections, these flanges facilitate flawless assembly in commercial environments, optimizing efficiency and reliability throughout industrial infrastructure.

Supply Ability, Terms, and Delivery Process

Enjoy robust supply ability on our Alloy Steel F91 Slip On Flange, supported by secure shipping and efficient handover processes. Flexible payment terms cater to varying customer needs, ensuring convenient transactions. Freight options are available for domestic and international deliveries, with prompt dispatch and minimal lead times. Trust our commitment to timely delivery and dependable logistics, making your procurement process smooth and hassle-free from order to receipt.

SS Flanges Specification

Standards	ASTM A182 / ASME SA182
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size	1/2" (15 NB) to 48" (1200NB)
Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Flange Face Types	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

SS Flange Dimensions

NPS (in.)	Stainless Steel Flange Dimensions
Dia. of Flange (in.)	No. of Bolts	Dia. of Bolts (in.)	Dia. of Bolt Holes (in.)	Bolt Circle (in.)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
20	27-1/2	20	1-1/8	1.25	25
24	32	20	1-1/4	1.38	29-1/2

SS Flanges Weight Chart

Pipe Normal Diameter (inch)	Outer diameter Flange	Thicjness Of Flange Minimum	Diameter of Hub	Diameter of Raised Face	Length Hub.Y	Thread Length	Diameter of Bolt Circle	Diameter of Bolt Holes	Number of Bolts	Diameter of Bolts (inch)	KG	LB
1/2"	15	89.00	11.20	30.20	35.10	15.70	15.70	60.50	15.80	4	1/2"	0.4	0.9
3/4"	20	98.50	12.70	38.10	42.90	15.70	15.70	69.90	15.80	4	1/2"	0.7	1.5
1"	25	108.00	14.20	49.30	50.80	17.50	17.50	79.30	15.80	4	1/2"	0.8	1.8
1-1/4"	32	117.50	15.70	58.70	63.50	20.60	20.60	88.90	15.80	4	1/2"	1.2	2.6
1-1/2"	40	127.00	17.50	65.00	73.20	22.40	22.40	98.60	15.80	4	1/2"	1.5	3.3
2"	50	152.50	19.10	77.70	91.90	25.40	25.40	120.70	19.10	4	5/8"	2.3	5.1
2-1/2"	65	178.00	22.40	90.40	104.60	28.40	28.40	139.70	19.10	4	5/8"	3.7	8.1
3"	80	190.50	23.90	108.00	127.00	30.20	30.20	152.40	19.10	4	5/8"	4.1	9
3-1/2"	90	216.00	23.90	122.20	139.70	31.80	31.80	177.80	19.10	8	5/8"	5.1	11.2
4"	100	228.50	23.90	134.90	157.20	33.30	33.30	190.50	19.10	8	5/8"	5.9	13
5"	125	254.00	23.90	163.60	185.70	36.60	36.60	215.90	22.40	8	3/4"	7	15.4
6"	150	279.50	25.40	192.00	215.90	39.60	39.60	241.30	22.40	8	3/4"	8.4	18.5
8"	200	343.00	28.40	246.10	269.70	44.50	44.50	298.50	22.40	8	3/4"	13	28.6
10"	250	406.50	30.20	304.80	323.90	49.30	49.30	362.00	25.40	12	7/8"	18	39.5
12"	300	482.50	31.80	365.30	381.00	55.60	55.60	431.80	25.40	12	7/8"	29	64
14"	350	533.50	35.10	400.10	412.80	57.20	57.20	476.30	28.50	12	1"	39	86
16"	400	597.00	36.60	457.20	469.90	63.50	63.50	539.80	28.50	16	1"	47	103
18"	450	635.00	39.60	505.00	533.40	68.30	68.30	577.90	31.80	16	1 1/8"	57	126
20"	500	698.50	42.90	558.80	584.20	73.20	73.20	635.00	31.80	20	1 1/8"	76	167
24"	600	813.00	47.80	663.40	692.20	82.60	82.60	749.30	35.10	20	1 1/4"	97	214

Stainless Steel Flange Pressure Rating Chart

ASME	Pressure Temperature Ratings For Stainless Steel Flanges
Temperature F	Class 150	Class 300	Class 400	Class 600	Class 900	Class 1500	Class 2500
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

FAQs of Alloy Steel F91 Slip On Flange:

Q: How can I purchase Alloy Steel F91 Slip On Flanges online?

A: You can easily add the Alloy Steel F91 Slip On Flange to your cart and proceed with instant checkout on our website for a seamless buying experience.

Q: What grades and sizes are available for Alloy Steel F91 Slip On Flanges?

A: We offer multiple grades and various sizes to meet diverse industrial requirements. Please refer to our product list or contact us for specific grade and size options.

Q: Where are these flanges typically used in industry?

A: Alloy Steel F91 Slip On Flanges are widely used in chemical plants, oil refineries, and energy sectors for secure pipe connections and assembly.

Q: What is the benefit of choosing a galvanized surface on the flange?

A: A galvanized surface provides superior corrosion resistance, ensuring longevity and reduced maintenance in harsh industrial environments.

Q: What is the supply and delivery process for bulk orders?

A: Bulk orders are supported by secure shipping, efficient freight options, and prompt handover, with flexible payment terms and timely delivery worldwide.
