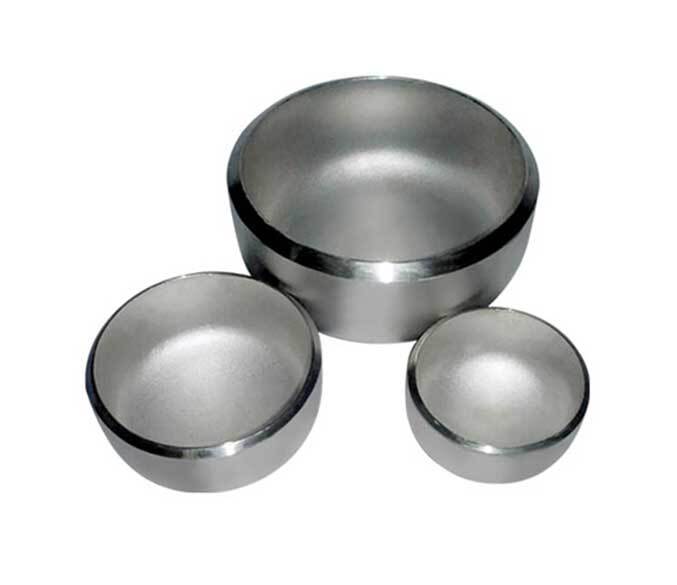

Duplex Steel 2205 Buttweld Cap

Get a Price/Quote

MOQ : 100 Pieces

Duplex Steel 2205 Buttweld Cap Specification

Hardness
Rigid

Size
Various Available

Steel Type
Stainless Steel

Grade
Various Grades Available

Steel Standard
AISI

Surface
Polished

Warranty
1 Year

Usage
Industrial

Duplex Steel 2205 Buttweld Cap Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Duplex Steel 2205 Buttweld Cap

Step into the spotlight with our Duplex Steel 2205 Buttweld Cap an astounding offer for industrial ventures! Explore a deal expertly decorated with unmatchable quality and versatility, available in various sizes and grades. Crafted from rigid, polished stainless steel in accordance with AISI standards, this cap stands out for its resilience and finish. With a 1-year warranty and outstanding export opportunities, we serve as a trusted exporter, manufacturer, supplier, and trader from India, ensuring your project needs are met with precision and reliability.

Advantages and Applications of Duplex Steel 2205 Buttweld Cap

Duplex Steel 2205 Buttweld Caps provide excellent corrosion resistance and mechanical strength, giving users a reliable advantage in demanding media applications. Designed for use in industrial sectors such as oil, gas, petrochemical, and water treatment, these caps are perfect for securely sealing pipe ends to prevent leaks and contamination. Their versatile specific usage spans various aggressive environments, making them an optimal choice for safeguarding pipelines and ensuring operational integrity.

Delivery Commitment, Export Valuation, and Sample Policy

Valuation of our Duplex Steel 2205 Buttweld Caps is based on premium manufacturing standards and immediate stock readiness. With prompt delivery times and a robust export network, we cater to major industrial markets globally. Sample policies are customer-focused, allowing for efficient evaluation of product quality prior to bulk purchase. Our commitment ensures you receive superior products with reduced lead times and hassle-free procurement, making us a preferred supplier in the steel segment.

Specification List of Duplex / Super Duplex Steel Butt weld Fittings

Standards	ASTM A815 / ASME SA815
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size	Seamless Butt Weld Fittings : 1/2 10 Welded Butt Weld Fittings : 1/2 48
Type	Seamless / Welded / Fabricated
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Manufacturing Standards of Duplex / Super Duplex Steel Buttweld Fittings

ASME B16.9 ASTM A815 Duplex / Super Duplex Steel Fittings	Factory-Made Wrought Buttwelding Fittings	Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28		Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications	Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
MSS SP75		Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers

Duplex / Super Duplex Steel Butt weld Fittings Dimensional Tolerances

All Fittings				90and 45 Ells and Tees	Reducers and Lap Joint Stub	Caps	180 Returns			Angularity Tol

Nominal Pipe Plane Size (NPS)	Outside(1) Diameter at Bevel	Inside(1) Diameter at End	Wall(2) Thickness	Centre-to- End Dimension A,B,C,M	Overall Length L	Overall Length E	Centre-to- Centre Dimension O	Back-to- Face Dimension K	Alignment at Ends U	Nominal Pipe SIze	Off Angle Q	Off Angle P
1/2 TO 2-1/2	+1/16	1/32	Not less than 87-1/2% of Normal Thickness	1/16	1/16	1/8	1/4	1/4	1/32	12 to 4	1/32	1/16
	-1/32									5 to 8	1/16	1/8
3 TO 3-1/2	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	10 to 12	3/32	3/16
4	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	14 to 16	3/32	1/4
5 TO 8	+1/32	1/16		1/16	1/16	1/4	1/4	1/4	1/32	18 to 24	1/8	3/8
	-1/16
10 TO 18	+1/16	1/8		3/32	3/32	1/4	3/8	1/4	1/16	All dimensions are in inches
	-1/8
20 TO 24	+1/4	3/32		3/32	3/32	1/4	3/8	1/4	1/16
	-3/32

FAQs of Duplex Steel 2205 Buttweld Cap:

Q: How does the Duplex Steel 2205 Buttweld Cap benefit industrial applications?

A: The Duplex Steel 2205 Buttweld Cap offers unmatchable durability and corrosion resistance, making it suitable for demanding use in oil, gas, petrochemical, and water treatment industries by securely sealing pipe ends.

Q: What sizes and grades are available for the Duplex Steel 2205 Buttweld Cap?

A: We offer Duplex Steel 2205 Buttweld Caps in various sizes and grades to accommodate specific industrial requirements, ensuring compatibility with a broad range of pipe systems.

Q: Where can these buttweld caps be used most effectively?

A: These buttweld caps are most effective in industrial settings where there is a need to close pipeline ends, including aggressive media and corrosive environments typical of process plants and water treatment facilities.

Q: What is the warranty and surface finish provided on the Duplex Steel 2205 Buttweld Cap?

A: Duplex Steel 2205 Buttweld Caps come with a polished surface and a 1-year warranty, ensuring both premium appearance and reliable long-term performance.

Q: How is the delivery process managed for export orders?

A: We maintain stock ready for immediate dispatch, offer premium packaging, and ensure prompt delivery, with sample policies designed for customer evaluation before placing large orders.

Q: What steel standards and hardness levels are maintained in the product?

A: Our buttweld caps comply with AISI steel standards and feature a rigid hardness, guaranteeing strength and durability for critical industrial operations.
