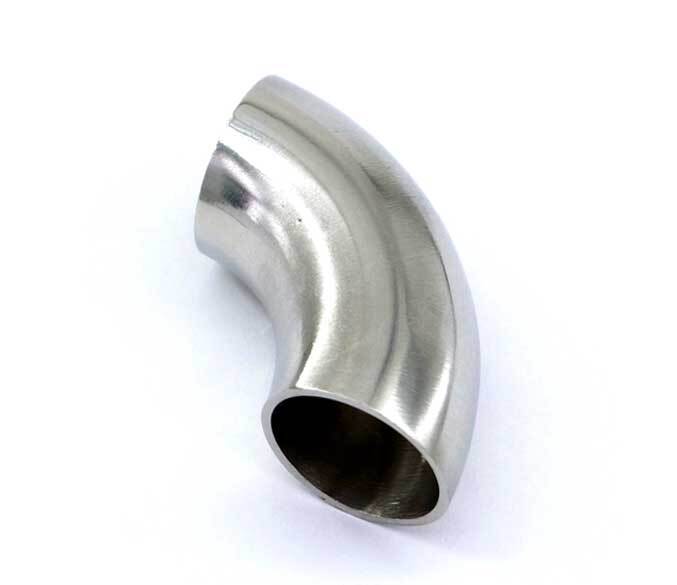

Incoloy 825 Buttweld Elbow

Get a Price/Quote

MOQ : 100 Pieces

Incoloy 825 Buttweld Elbow Specification

Size
Various Available

Hardness
Rigid

Corrosion Resistant
Yes

Steel Type
Carbon Steel

Grade
Various Grades Available

Steel Standard
AISI

Surface
Polished

Warranty
1 Year

Usage
Industrial

Incoloy 825 Buttweld Elbow Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Incoloy 825 Buttweld Elbow

Discover the classic strength and flawless durability of the Incoloy 825 Buttweld Elbow, now available at reduced list prices with new release options for prime industrial performance. Engineered using rigid carbon steel and polished to perfection, this elbow showcases competitive pricing without compromising quality. As a leading exporter, manufacturer, supplier, and trader in India, we offer various grades aligning with AISI standards. Enjoy one year warranty and exceptional corrosion resistance, making it suitable for diverse industrial applications. Multiple sizes and grades are delivered to meet tailored project requirements.

Application & Surface Usage

The Incoloy 825 Buttweld Elbow features a polished surface, ensuring both aesthetic appeal and superior resilience. With a rigid hardness profile, it is well-suited for demanding industrial environments, providing flawless connections for piping systems. Its primary usage spans chemical processing, oil refineries, and petrochemical plants. This elbow is compatible with various grades and sizes, designed to withstand corrosive conditions, and is perfect for industries seeking reliable, corrosion-resistant solutions.

Domestic Market & Supply Advantages

Our Incoloy 825 Buttweld Elbow serves the prime domestic industrial market with reliable supply ability supporting bulk or custom orders. Express shipping and prompt delivery ensure projects remain on schedule. The list price reflects our competitive approach, and samples are available for client evaluation before purchase. Delivered across India, our product meets the requirements of manufacturers, suppliers, and traders, backed by exceptional support for all your piping needs.

Specification List of Inconel Butt weld Fittings

Standards	ASTM A234 / ASME SA234
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size	Seamless Butt Weld Fittings : 1/2 10 Welded Butt Weld Fittings : 1/2 48
Type	Seamless / Welded / Fabricated
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Manufacturing Standards of Inconel Buttweld Fittings

ASME B16.9 ASTM A234 AS Fittings	Factory-Made Wrought Buttwelding Fittings	Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28		Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications	Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
MSS SP75		Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers

Inconel Butt weld Fittings Dimensional Tolerances

All Fittings				90and 45 Ells and Tees	Reducers and Lap Joint Stub	Caps	180 Returns			Angularity Tol

Nominal Pipe Plane Size (NPS)	Outside(1) Diameter at Bevel	Inside(1) Diameter at End	Wall(2) Thickness	Centre-to- End Dimension A,B,C,M	Overall Length L	Overall Length E	Centre-to- Centre Dimension O	Back-to- Face Dimension K	Alignment at Ends U	Nominal Pipe SIze	Off Angle Q	Off Angle P
1/2 TO 2-1/2	+1/16	1/32	Not less than 87-1/2% of Normal Thickness	1/16	1/16	1/8	1/4	1/4	1/32	12 to 4	1/32	1/16
	-1/32									5 to 8	1/16	1/8
3 TO 3-1/2	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	10 to 12	3/32	3/16
4	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	14 to 16	3/32	1/4
5 TO 8	+1/32	1/16		1/16	1/16	1/4	1/4	1/4	1/32	18 to 24	1/8	3/8
	-1/16
10 TO 18	+1/16	1/8		3/32	3/32	1/4	3/8	1/4	1/16	All dimensions are in inches
	-1/8
20 TO 24	+1/4	3/32		3/32	3/32	1/4	3/8	1/4	1/16
	-3/32

FAQs of Incoloy 825 Buttweld Elbow:

Q: How does the Incoloy 825 Buttweld Elbow benefit industrial usage?

A: The Incoloy 825 Buttweld Elbow offers superior corrosion resistance and a flawless polished surface, making it ideal for critical industrial applications such as chemical processing and oil refineries.

Q: What is the warranty period provided with this elbow?

A: Each Incoloy 825 Buttweld Elbow comes with a standard warranty period of one year, ensuring peace of mind for customers regarding product reliability.

Q: Where is this elbow primarily supplied and delivered?

A: This product is primarily supplied and delivered across various domestic markets in India through express shipping for fast and reliable fulfillment.

Q: When can samples be requested before placing an order?

A: Samples of Incoloy 825 Buttweld Elbow are available upon request, allowing clients to evaluate quality prior to finalizing bulk or customized orders.

Q: What process ensures the elbows corrosion resistance and rigid hardness?

A: The elbow undergoes advanced manufacturing using carbon steel and is polished for enhanced surface quality and optimum rigidity, ensuring its prime corrosion resistance.
