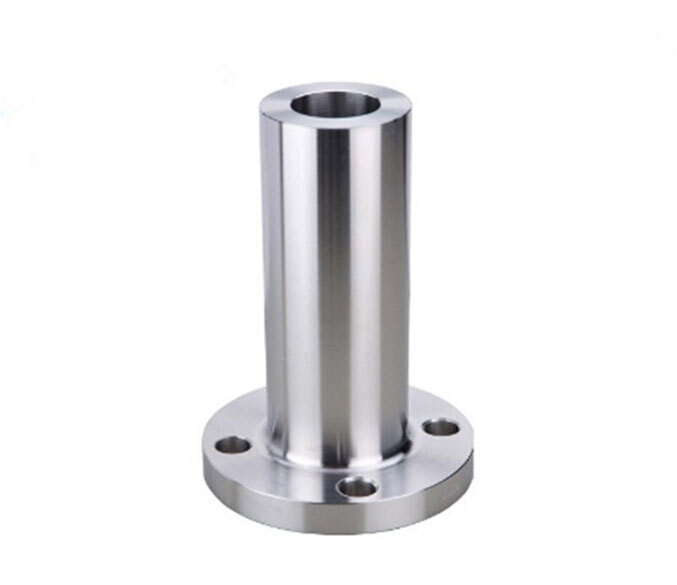

Monel K500 Long Weld Neck Flange

Get a Price/Quote

MOQ : 100 Pieces

Monel K500 Long Weld Neck Flange Specification

Surface Finish
Polished

Usage
Industrial

Features
High Quality

Grade
Multple Grades Available

Material
Stainless Steel

Surface
Galvanized

Technics
Cold Rolled

Size
Various Sizes Available

Monel K500 Long Weld Neck Flange Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Monel K500 Long Weld Neck Flange

Experience prime industrial engineering with our popular Monel K500 Long Weld Neck Flange, masterfully designed for demanding environments. Personalise your selection from a deal of various sizes and multiple grades, ensuring a perfect fit for your unique requirements. Crafted from marvelous, high-quality stainless steel, each flange features a polished galvanized surface and is manufactured using advanced cold rolled technics. We are a leading exporter, manufacturer, supplier, and trader in India, offering dependable products for robust industrial usage. Elevate your operations with reliable surface finish and remarkable durability.

Choose Monel K500 Long Weld Neck Flange for Versatile Industrial Needs

Our Monel K500 Long Weld Neck Flange stands out due to its extra features including high-quality stainless steel construction and a polished, galvanized surface for enhanced resistance. Multiple sizes and grades are available, letting you match your precise application needs. Popular among manufacturers and traders, this flange is designed for prime performance in industrial settings, making it suitable for usage in high-pressure pipelines and corrosive environments.

Sample Availability and Certified Delivery Options for Monel K500 Flanges

We offer Monel K500 Long Weld Neck Flange samples for professional assessment before a purchase order. Certified for international standards, our products ensure quality and reliability. Efficient delivery is provided to major export markets including Asia, Europe, and the Middle East. As a responsible supplier, we facilitate swift dispatch and transparent deals for all orders, allowing you to experience our masterful product before committing.

Duplex Flanges Specification

Standards	ASTM A182 / ASME SA182
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size	1/2" (15 NB) to 48" (1200NB)
Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Flange Face Types	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Super Duplex Flange Dimensions

NPS (in.)	Duplex Steel Flange Dimensions
NPS (in.)	Dia. of Flange (in.)	No. of Bolts	Dia. of Bolts (in.)	Dia. of Bolt Holes (in.)	Bolt Circle (in.)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
20	27-1/2	20	1-1/8	1.25	25
24	32	20	1-1/4	1.38	29-1/2

Duplex Flanges Weight Chart

Pipe Normal Diameter (inch)		Outer diameter Flange	Thicjness Of Flange Minimum	Diameter of Hub	Diameter of Raised Face	Length Hub.Y	Thread Length	Diameter of Bolt Circle	Diameter of Bolt Holes	Number of Bolts	Diameter of Bolts (inch)	KG	LB
1/2"	15	89.00	11.20	30.20	35.10	15.70	15.70	60.50	15.80	4	1/2"	0.4	0.9
3/4"	20	98.50	12.70	38.10	42.90	15.70	15.70	69.90	15.80	4	1/2"	0.7	1.5
1"	25	108.00	14.20	49.30	50.80	17.50	17.50	79.30	15.80	4	1/2"	0.8	1.8
1-1/4"	32	117.50	15.70	58.70	63.50	20.60	20.60	88.90	15.80	4	1/2"	1.2	2.6
1-1/2"	40	127.00	17.50	65.00	73.20	22.40	22.40	98.60	15.80	4	1/2"	1.5	3.3
2"	50	152.50	19.10	77.70	91.90	25.40	25.40	120.70	19.10	4	5/8"	2.3	5.1
2-1/2"	65	178.00	22.40	90.40	104.60	28.40	28.40	139.70	19.10	4	5/8"	3.7	8.1
3"	80	190.50	23.90	108.00	127.00	30.20	30.20	152.40	19.10	4	5/8"	4.1	9
3-1/2"	90	216.00	23.90	122.20	139.70	31.80	31.80	177.80	19.10	8	5/8"	5.1	11.2
4"	100	228.50	23.90	134.90	157.20	33.30	33.30	190.50	19.10	8	5/8"	5.9	13
5"	125	254.00	23.90	163.60	185.70	36.60	36.60	215.90	22.40	8	3/4"	7	15.4
6"	150	279.50	25.40	192.00	215.90	39.60	39.60	241.30	22.40	8	3/4"	8.4	18.5
8"	200	343.00	28.40	246.10	269.70	44.50	44.50	298.50	22.40	8	3/4"	13	28.6
10"	250	406.50	30.20	304.80	323.90	49.30	49.30	362.00	25.40	12	7/8"	18	39.5
12"	300	482.50	31.80	365.30	381.00	55.60	55.60	431.80	25.40	12	7/8"	29	64
14"	350	533.50	35.10	400.10	412.80	57.20	57.20	476.30	28.50	12	1"	39	86
16"	400	597.00	36.60	457.20	469.90	63.50	63.50	539.80	28.50	16	1"	47	103
18"	450	635.00	39.60	505.00	533.40	68.30	68.30	577.90	31.80	16	1 1/8"	57	126
20"	500	698.50	42.90	558.80	584.20	73.20	73.20	635.00	31.80	20	1 1/8"	76	167
24"	600	813.00	47.80	663.40	692.20	82.60	82.60	749.30	35.10	20	1 1/4"	97	214

Duplex Flange Pressure Rating Chart

ASME	Pressure Temperature Ratings For Duplex Steel Flanges
Temperature °F	Class 150	Class 300	Class 400	Class 600	Class 900	Class 1500	Class 2500
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

FAQs of Monel K500 Long Weld Neck Flange:

Q: How can I request a sample of the Monel K500 Long Weld Neck Flange?

A: You can request a sample by contacting our sales team, specifying your size and grade requirements. We offer samples to help you evaluate product quality before making a purchase order.

Q: What certifications does the Monel K500 Long Weld Neck Flange hold?

A: Our Monel K500 Long Weld Neck Flanges are certified to meet international standards, assuring superior quality and compliance for industrial usage and exporting purposes.

Q: Where do you deliver Monel K500 Long Weld Neck Flange orders?

A: We deliver our flanges to major export markets, including regions in Asia, Europe, and the Middle East, ensuring timely and secure shipment worldwide.

Q: What is the surface finish of the Monel K500 Long Weld Neck Flange?

A: Each flange features a polished, galvanized surface finish, providing marvelous resistance to corrosion and enhancing its durability for industrial applications.

Q: When does the order processing start after placing a purchase order?

A: Order processing commences promptly once your purchase order is confirmed, ensuring swift handling and efficient delivery to meet your project deadlines.

Q: What are the main benefits of using Monel K500 Long Weld Neck Flange in industrial systems?

A: The flange offers masterful strength, corrosion resistance, and versatility in various sizes and grades, making it ideal for demanding pipelines and harsh environments.
