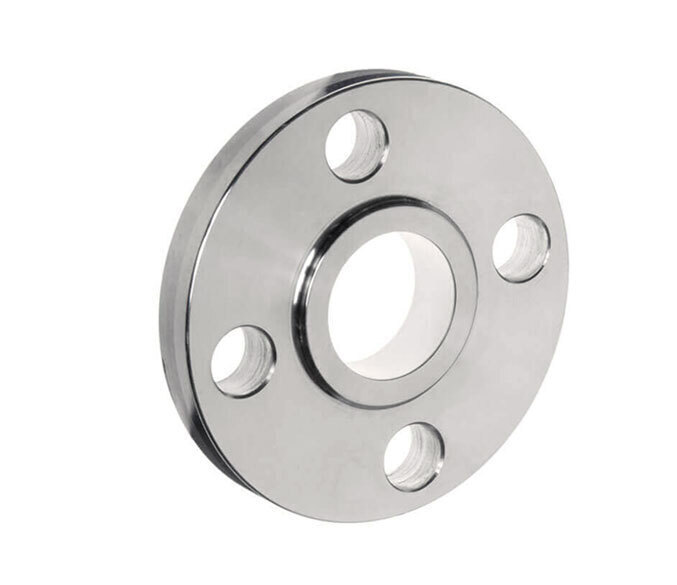

Monel K500 Threaded Flange

Get a Price/Quote

MOQ : 100 Pieces

Monel K500 Threaded Flange Specification

Grade
Multple Grades Available

Corrosion Resistant
Yes

Features
High Quality

Surface Finish
Polished

Material
Stainless Steel

Standard
ANSI

Surface
Galvanized

Technics
Cold Rolled

Size
Various Sizes Available

Monel K500 Threaded Flange Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Monel K500 Threaded Flange

Access the ace among flanges with our Monel K500 Threaded Flange, brought to you by a spectacular exporter, manufacturer, supplier, and trader from India. Add to Cart to benefit from imposing strength and unbeatable discount offers. Featuring a polished surface finish and multiple available grades, this high-quality flange meets ANSI standards and is expertly crafted from cold-rolled, galvanized stainless steel. Designed for corrosion resistance, it offers dependable performance across various industrial applications. Available in an array of sizes, our flange is tailored for superior reliability and lasting durability.

Features & Competitive Edge of Monel K500 Threaded Flange

The Monel K500 Threaded Flange stands out for its high quality and corrosion-resistant properties. With a polished, galvanized surface and crafted using cold-rolled stainless steel, it meets stringent ANSI standards. Multiple grades are available for tailored performance in diverse applications. Its primary advantage lies in robust manufacturing, ensuring reliability and long service life even in challenging environments. Widely used by engineering, petrochemical, and marine industries, this flange is ideal for those seeking durability and precision.

Packaging Details, Delivery Timeline, and Sample Policy

Order processing for Monel K500 Threaded Flange is handled efficiently, with secure packaging to prevent damage during transit. Asking price varies with size and grade selected. Samples are provided on request, enabling customers to evaluate quality before placing larger orders. Delivery is prompt and reliable, meeting industry standards for timeliness. Comprehensive packaging ensures every order reaches you in pristine condition, reinforcing trust and satisfaction with each purchase.

Duplex Flanges Specification

Standards	ASTM A182 / ASME SA182
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size	1/2" (15 NB) to 48" (1200NB)
Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Flange Face Types	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Super Duplex Flange Dimensions

NPS (in.)	Duplex Steel Flange Dimensions
NPS (in.)	Dia. of Flange (in.)	No. of Bolts	Dia. of Bolts (in.)	Dia. of Bolt Holes (in.)	Bolt Circle (in.)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
20	27-1/2	20	1-1/8	1.25	25
24	32	20	1-1/4	1.38	29-1/2

Duplex Flanges Weight Chart

Pipe Normal Diameter (inch)		Outer diameter Flange	Thicjness Of Flange Minimum	Diameter of Hub	Diameter of Raised Face	Length Hub.Y	Thread Length	Diameter of Bolt Circle	Diameter of Bolt Holes	Number of Bolts	Diameter of Bolts (inch)	KG	LB
1/2"	15	89.00	11.20	30.20	35.10	15.70	15.70	60.50	15.80	4	1/2"	0.4	0.9
3/4"	20	98.50	12.70	38.10	42.90	15.70	15.70	69.90	15.80	4	1/2"	0.7	1.5
1"	25	108.00	14.20	49.30	50.80	17.50	17.50	79.30	15.80	4	1/2"	0.8	1.8
1-1/4"	32	117.50	15.70	58.70	63.50	20.60	20.60	88.90	15.80	4	1/2"	1.2	2.6
1-1/2"	40	127.00	17.50	65.00	73.20	22.40	22.40	98.60	15.80	4	1/2"	1.5	3.3
2"	50	152.50	19.10	77.70	91.90	25.40	25.40	120.70	19.10	4	5/8"	2.3	5.1
2-1/2"	65	178.00	22.40	90.40	104.60	28.40	28.40	139.70	19.10	4	5/8"	3.7	8.1
3"	80	190.50	23.90	108.00	127.00	30.20	30.20	152.40	19.10	4	5/8"	4.1	9
3-1/2"	90	216.00	23.90	122.20	139.70	31.80	31.80	177.80	19.10	8	5/8"	5.1	11.2
4"	100	228.50	23.90	134.90	157.20	33.30	33.30	190.50	19.10	8	5/8"	5.9	13
5"	125	254.00	23.90	163.60	185.70	36.60	36.60	215.90	22.40	8	3/4"	7	15.4
6"	150	279.50	25.40	192.00	215.90	39.60	39.60	241.30	22.40	8	3/4"	8.4	18.5
8"	200	343.00	28.40	246.10	269.70	44.50	44.50	298.50	22.40	8	3/4"	13	28.6
10"	250	406.50	30.20	304.80	323.90	49.30	49.30	362.00	25.40	12	7/8"	18	39.5
12"	300	482.50	31.80	365.30	381.00	55.60	55.60	431.80	25.40	12	7/8"	29	64
14"	350	533.50	35.10	400.10	412.80	57.20	57.20	476.30	28.50	12	1"	39	86
16"	400	597.00	36.60	457.20	469.90	63.50	63.50	539.80	28.50	16	1"	47	103
18"	450	635.00	39.60	505.00	533.40	68.30	68.30	577.90	31.80	16	1 1/8"	57	126
20"	500	698.50	42.90	558.80	584.20	73.20	73.20	635.00	31.80	20	1 1/8"	76	167
24"	600	813.00	47.80	663.40	692.20	82.60	82.60	749.30	35.10	20	1 1/4"	97	214

Duplex Flange Pressure Rating Chart

ASME	Pressure Temperature Ratings For Duplex Steel Flanges
Temperature °F	Class 150	Class 300	Class 400	Class 600	Class 900	Class 1500	Class 2500
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

FAQs of Monel K500 Threaded Flange:

Q: How do I choose the correct size and grade for my Monel K500 Threaded Flange application?

A: Selecting the right size and grade depends on your specific operational requirements and the environment in which the flange will be used. Consult with our technical team or refer to application guidelines for tailored recommendations.

Q: What is the process for placing an order and accessing discounts on Monel K500 Threaded Flanges?

A: To place an order, simply contact us or use the Add to Cart feature on our platform. Discounts may be available for bulk purchases, so inquire about current offers during order processing.

Q: Where are Monel K500 Threaded Flanges commonly used?

A: These flanges are widely utilized in engineering, petrochemical, marine, and industrial sectors where high corrosion resistance and robust performance are required.

Q: When can I expect my order to be delivered after confirming my purchase?

A: Delivery time depends on the order quantity and location but typically falls within industry-standard timelines. We prioritize prompt processing to ensure timely dispatch and delivery.

Q: What are the benefits of choosing Monel K500 Threaded Flange from your company?

A: You gain access to premium product quality, competitive pricing, reliable delivery, and the assurance of corrosion-resistant, durable flanges crafted by seasoned exporters and suppliers in India.

Q: How are Monel K500 Threaded Flanges packaged to ensure safety during delivery?

A: Flanges are securely packaged using high-grade materials to prevent damage in transit, guaranteeing that each product arrives in impeccable condition.
