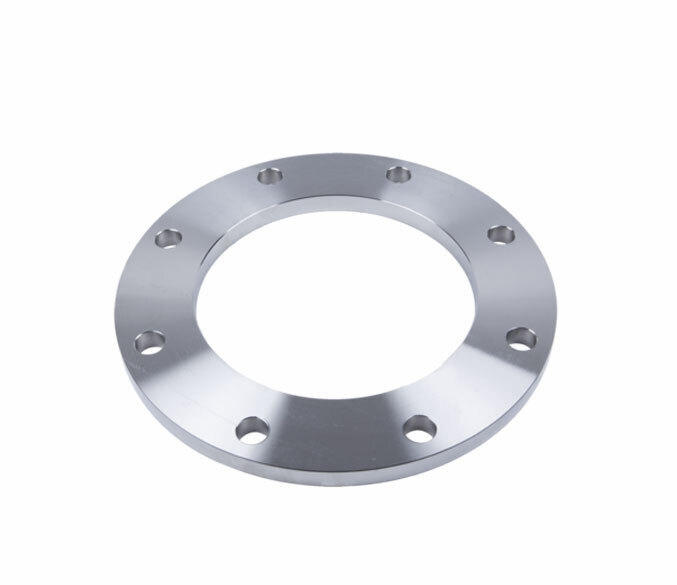

Nickel Alloy 200 Plate Flange

Get a Price/Quote

MOQ : 100 Pieces

Nickel Alloy 200 Plate Flange Specification

Surface Finish
Polished

Features
High Quality

Corrosion Resistant
Yes

Usage
Industrial

Grade
Multple Grades Available

Standard
ANSI

Surface
Galvanized

Size
Various Sizes Available

Nickel Alloy 200 Plate Flange Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Nickel Alloy 200 Plate Flange

Experience the sensational engineering of Nickel Alloy 200 Plate Flangeoffered in various sizes with ANSI standards, galvanised finish, and a polished appearance. These valorous flanges deliver exceptional corrosion resistance and reliability in demanding industrial environments. Sourced and exported directly from India, they encompass high-quality craftsmanship and multiple grade options. Our plate flanges are scarce yet available at a reduced priceso try now to leverage this opportunity! Whether youre a manufacturer, supplier, or trader, elevate your setup with this polished, robust solution built for lasting industrial performance.

Distinctive Features and Applications

Nickel Alloy 200 Plate Flanges are designed for industrial use, boasting a polished galvanized surface for enhanced durability. Their corrosion-resistant nature and multiple available grades make them an ideal fit for applications where reliability meets performance. These flanges meet ANSI standards and are tailored for a variety of pipelines and process equipment, ensuring a valorous and professional installation. Their polished finish delivers both functional and aesthetic benefits, perfectly suited for high-demand usage environments.

Sample Policy and Shipment Details

Our sample policy ensures you can assess the quality of Nickel Alloy 200 Plate Flanges before commitment. Samples are available on request with expenditure details clearly outlined prior to dispatch. Each sample is carefully dispatched, aligning with our streamlined shipment process. Certified by recognized authorities, every shipment assures compliance and performance standards. This transparent policy is crafted for manufacturers, suppliers, and traders who prioritize tested products and professional documentation in their procurement decisions.

Duplex Flanges Specification

Standards	ASTM A182 / ASME SA182
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size	1/2" (15 NB) to 48" (1200NB)
Class	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Flange Face Types	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Super Duplex Flange Dimensions

NPS (in.)	Duplex Steel Flange Dimensions
NPS (in.)	Dia. of Flange (in.)	No. of Bolts	Dia. of Bolts (in.)	Dia. of Bolt Holes (in.)	Bolt Circle (in.)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
20	27-1/2	20	1-1/8	1.25	25
24	32	20	1-1/4	1.38	29-1/2

Duplex Flanges Weight Chart

Pipe Normal Diameter (inch)		Outer diameter Flange	Thicjness Of Flange Minimum	Diameter of Hub	Diameter of Raised Face	Length Hub.Y	Thread Length	Diameter of Bolt Circle	Diameter of Bolt Holes	Number of Bolts	Diameter of Bolts (inch)	KG	LB
1/2"	15	89.00	11.20	30.20	35.10	15.70	15.70	60.50	15.80	4	1/2"	0.4	0.9
3/4"	20	98.50	12.70	38.10	42.90	15.70	15.70	69.90	15.80	4	1/2"	0.7	1.5
1"	25	108.00	14.20	49.30	50.80	17.50	17.50	79.30	15.80	4	1/2"	0.8	1.8
1-1/4"	32	117.50	15.70	58.70	63.50	20.60	20.60	88.90	15.80	4	1/2"	1.2	2.6
1-1/2"	40	127.00	17.50	65.00	73.20	22.40	22.40	98.60	15.80	4	1/2"	1.5	3.3
2"	50	152.50	19.10	77.70	91.90	25.40	25.40	120.70	19.10	4	5/8"	2.3	5.1
2-1/2"	65	178.00	22.40	90.40	104.60	28.40	28.40	139.70	19.10	4	5/8"	3.7	8.1
3"	80	190.50	23.90	108.00	127.00	30.20	30.20	152.40	19.10	4	5/8"	4.1	9
3-1/2"	90	216.00	23.90	122.20	139.70	31.80	31.80	177.80	19.10	8	5/8"	5.1	11.2
4"	100	228.50	23.90	134.90	157.20	33.30	33.30	190.50	19.10	8	5/8"	5.9	13
5"	125	254.00	23.90	163.60	185.70	36.60	36.60	215.90	22.40	8	3/4"	7	15.4
6"	150	279.50	25.40	192.00	215.90	39.60	39.60	241.30	22.40	8	3/4"	8.4	18.5
8"	200	343.00	28.40	246.10	269.70	44.50	44.50	298.50	22.40	8	3/4"	13	28.6
10"	250	406.50	30.20	304.80	323.90	49.30	49.30	362.00	25.40	12	7/8"	18	39.5
12"	300	482.50	31.80	365.30	381.00	55.60	55.60	431.80	25.40	12	7/8"	29	64
14"	350	533.50	35.10	400.10	412.80	57.20	57.20	476.30	28.50	12	1"	39	86
16"	400	597.00	36.60	457.20	469.90	63.50	63.50	539.80	28.50	16	1"	47	103
18"	450	635.00	39.60	505.00	533.40	68.30	68.30	577.90	31.80	16	1 1/8"	57	126
20"	500	698.50	42.90	558.80	584.20	73.20	73.20	635.00	31.80	20	1 1/8"	76	167
24"	600	813.00	47.80	663.40	692.20	82.60	82.60	749.30	35.10	20	1 1/4"	97	214

Duplex Flange Pressure Rating Chart

ASME	Pressure Temperature Ratings For Duplex Steel Flanges
Temperature °F	Class 150	Class 300	Class 400	Class 600	Class 900	Class 1500	Class 2500
-20 to 100	275	720	960	1440	2160	3600	6000
200	230	600	800	1200	1800	3000	5000
300	205	540	720	1080	1620	2700	4500
400	190	495	660	995	1490	2485	4140
500	170	465	620	930	1395	2330	3880
600	140	435	580	875	1310	2185	3640
650	125	430	575	860	1290	2150	3580
700	110	425	565	850	1275	2125	3540
750	95	415	555	830	1245	2075	3460
800	80	405	540	805	1210	2015	3360
850	65	395	530	790	1190	1980	3300
900	50	390	520	780	1165	1945	3240
950	35	380	510	765	1145	1910	3180
1000	20	320	430	640	965	1605	2675
1050	20	310	410	615	925	1545	2570
1100	20	255	345	515	770	1285	2145
1150	20	200	265	400	595	995	1655
1200	20	155	205	310	465	770	1285
1250	20	115	150	225	340	565	945
1300	20	85	115	170	255	430	715
1350	20	60	80	125	185	310	515
1400	20	50	65	95	145	240	400
1450	15	35	45	70	105	170	285
1500	10	25	35	55	80	135	230

FAQs of Nickel Alloy 200 Plate Flange:

Q: How do I process an order for Nickel Alloy 200 Plate Flange?

A: You can initiate your order by contacting us directly through our website or sales team, specifying the required size, grade, and quantity. Our team will guide you through selection, pricing, and shipment procedures.

Q: What are the benefits of the polished surface on these flanges?

A: The polished surface enhances corrosion resistance, simplifies maintenance, and provides a professional appearance, making the flange suitable for both functional and visible installations in industrial environments.

Q: When can I expect my sample to be dispatched after request?

A: Samples are typically dispatched within a few working days following confirmation of expenditure details and shipment arrangements. Delivery timelines may vary based on location and quantity.

Q: Where are Nickel Alloy 200 Plate Flanges commonly used?

A: These flanges are primarily utilized in industrial pipelines, chemical processing plants, power generation facilities, and environments where high corrosion resistance and durability are essential.

Q: How does your products certification benefit buyers?

A: Certification ensures that Nickel Alloy 200 Plate Flanges meet international and industry-specific standards, guaranteeing reliability, performance, and conformitykey aspects for safe industrial application.
