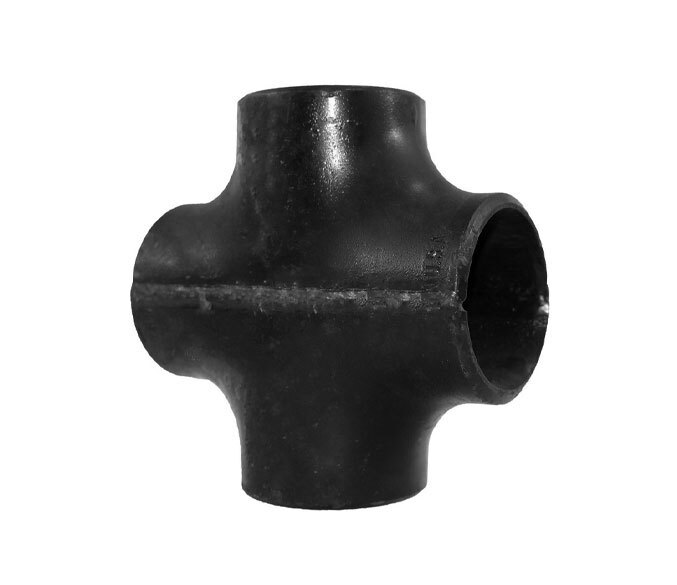

Alloy Steel WP11 Buttweld Cross

Get a Price/Quote

MOQ : 100 Pieces

Alloy Steel WP11 Buttweld Cross Specification

Size
Various Available

Hardness
Rigid

Steel Type
Carbon Steel

Grade
Various Grades Available

Steel Standard
AISI

Surface
Polished

Warranty
1 Year

Usage
Industrial

Alloy Steel WP11 Buttweld Cross Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Alloy Steel WP11 Buttweld Cross

Grab this classic Alloy Steel WP11 Buttweld Crossyour last chance to secure a commanding solution for industrial piping needs! Buy online from a leading exporter, manufacturer, supplier, and trader from India. Featuring a robust 1-year warranty and a rigid hardness you can rely on, this product boasts a polished surface for a refined finish. Available in various sizes and grades, it meets AISI steel standards and utilizes high-quality carbon steel. Experience a polished, reliable cross designed for industrial-grade performance and enduring commercial use.

Commercial Applications & Advantages of WP11 Buttweld Cross

The Alloy Steel WP11 Buttweld Cross is widely used in commercial industries such as oil & gas, petrochemicals, and power plants. Its commanding design provides secure pipeline intersections, ensuring efficient fluid or gas distribution. The polished surface enhances corrosion resistance, extending the components lifespan. Its trusted advantage lies in rigidity and performance, making it suitable for high-pressure environments. Various grades and sizes offer flexibility for different project requirements, ensuring safety and structural integrity in every installation.

Export Markets, Certifications & Delivery Assurance

Alloy Steel WP11 Buttweld Cross commands a place in main export markets across North America, Europe, Middle East, and Asia. Certified to international standards, each cross is checked for quality before being handed over for shipment. Delivery time is reliable, with prompt arrival at your site, ensuring project schedules are met efficiently. Every product is accompanied by proper documentation and certifications, reinforcing trust in its commercial value and international compliance for seamless transactions.

Specification List of Alloy Steel Butt weld Fittings

Standards	ASTM A234 / ASME SA234
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size	Seamless Butt Weld Fittings : 1/2 10 Welded Butt Weld Fittings : 1/2 48
Type	Seamless / Welded / Fabricated
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Manufacturing Standards of Alloy Steel Buttweld Fittings

ASME B16.9 ASTM A234 AS Fittings	Factory-Made Wrought Buttwelding Fittings	Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28		Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications	Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
MSS SP75		Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers

Alloy Steel Butt weld Fittings Dimensional Tolerances

All Fittings				90and 45 Ells and Tees	Reducers and Lap Joint Stub	Caps	180 Returns			Angularity Tol

Nominal Pipe Plane Size (NPS)	Outside(1) Diameter at Bevel	Inside(1) Diameter at End	Wall(2) Thickness	Centre-to- End Dimension A,B,C,M	Overall Length L	Overall Length E	Centre-to- Centre Dimension O	Back-to- Face Dimension K	Alignment at Ends U	Nominal Pipe SIze	Off Angle Q	Off Angle P
1/2 TO 2-1/2	+1/16	1/32	Not less than 87-1/2% of Normal Thickness	1/16	1/16	1/8	1/4	1/4	1/32	12 to 4	1/32	1/16
	-1/32									5 to 8	1/16	1/8
3 TO 3-1/2	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	10 to 12	3/32	3/16
4	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	14 to 16	3/32	1/4
5 TO 8	+1/32	1/16		1/16	1/16	1/4	1/4	1/4	1/32	18 to 24	1/8	3/8
	-1/16
10 TO 18	+1/16	1/8		3/32	3/32	1/4	3/8	1/4	1/16	All dimensions are in inches
	-1/8
20 TO 24	+1/4	3/32		3/32	3/32	1/4	3/8	1/4	1/16
	-3/32

FAQs of Alloy Steel WP11 Buttweld Cross:

Q: How is the Alloy Steel WP11 Buttweld Cross used in industrial settings?

A: It is commonly used to connect four pipes within industrial pipelines, ensuring smooth flow in applications like oil, gas, and chemical processing plants.

Q: What grades and sizes are available for the Alloy Steel WP11 Buttweld Cross?

A: Various grades and sizes are offered, allowing customization to meet specific industrial requirements and compatibility with existing pipe networks.

Q: When is the typical delivery time for WP11 Buttweld Cross exports?

A: Delivery is prompt, with the product handed over to logistics partners soon after order confirmation, ensuring reliable arrival according to schedule.

Q: Where can I buy the Alloy Steel WP11 Buttweld Cross online?

A: You can conveniently buy this product online from reputable exporters, manufacturers, suppliers, and traders based in India.

Q: What is the process for certification of the Alloy Steel WP11 Buttweld Cross?

A: Each cross is inspected according to international standards, and proper certifications are provided to validate the products quality and compliance.

Q: What benefits does the polished surface provide to the Alloy Steel WP11 Buttweld Cross?

A: The polished surface enhances aesthetic appeal, improves corrosion resistance, and increases durability, making it suitable for demanding industrial uses.
