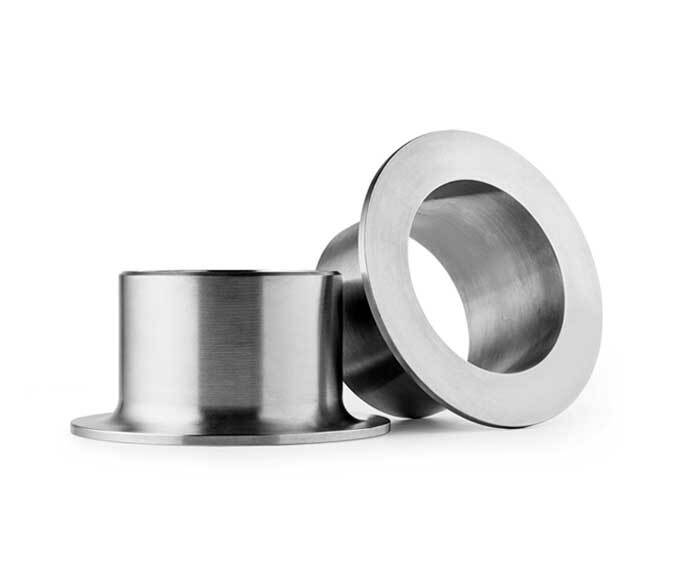

Monel 400 Stub End

Get a Price/Quote

MOQ : 100 Pieces

Monel 400 Stub End Specification

Size
Various Available

Steel Type
Carbon Steel

Grade
Various Grades Available

Steel Standard
AISI

Surface
Polished

Warranty
1 Year

Usage
Industrial

Monel 400 Stub End Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Monel 400 Stub End

Select brilliance for your industrial projects with our Monel 400 Stub End, a monument of design and strength. Engineered by virtuoso manufacturers, every piece is meticulously crafted to AISI steel standards and offers customizable sizing with various available grades for advance purchase. The durable carbon steel construction is complemented by a polished surface, ensuring optimal performance and longevity. As a leading exporter, manufacturer, supplier, and trader in India, we deliver monumental reliability, supported by a one-year warranty, to meet diversified industrial requirements.

Versatile Industrial Application of Monel 400 Stub End

Monel 400 Stub Ends are primarily utilized in industrial pipe fitting, ensuring reliable joint connections for pipelines. Their use type spans general fabrication to specific applications in chemical processing, oil, and gas industries. These stub ends function proficiently with corrosive application media such as acids and seawater, making them ideal for environments demanding exceptional resistance and longevity. Select the perfect stub end to enhance your systems stability and performance.

Certifications, Samples, and Packaging for Export Excellence

Our Monel 400 Stub Ends come with prominent certifications, confirming quality and compliance for monumentally safe operations. Samples are available for advance inspection before order completion, ensuring customer satisfaction and confidence in the products virtuous performance. Packaging details are tailored for each export market and crafted to minimize outlay while maximizing product protection throughout transit, providing you with a seamless purchasing experience.

Specification List of Monel Butt weld Fittings

Standards	ASTM A234 / ASME SA234
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size	Seamless Butt Weld Fittings : 1/2 10 Welded Butt Weld Fittings : 1/2 48
Type	Seamless / Welded / Fabricated
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Manufacturing Standards of Monel Buttweld Fittings

ASME B16.9 ASTM A234 AS Fittings	Factory-Made Wrought Buttwelding Fittings	Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28		Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications	Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
MSS SP75		Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers

Monel Butt weld Fittings Dimensional Tolerances

All Fittings				90and 45 Ells and Tees	Reducers and Lap Joint Stub	Caps	180 Returns			Angularity Tol

Nominal Pipe Plane Size (NPS)	Outside(1) Diameter at Bevel	Inside(1) Diameter at End	Wall(2) Thickness	Centre-to- End Dimension A,B,C,M	Overall Length L	Overall Length E	Centre-to- Centre Dimension O	Back-to- Face Dimension K	Alignment at Ends U	Nominal Pipe SIze	Off Angle Q	Off Angle P
1/2 TO 2-1/2	+1/16	1/32	Not less than 87-1/2% of Normal Thickness	1/16	1/16	1/8	1/4	1/4	1/32	12 to 4	1/32	1/16
	-1/32									5 to 8	1/16	1/8
3 TO 3-1/2	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	10 to 12	3/32	3/16
4	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	14 to 16	3/32	1/4
5 TO 8	+1/32	1/16		1/16	1/16	1/4	1/4	1/4	1/32	18 to 24	1/8	3/8
	-1/16
10 TO 18	+1/16	1/8		3/32	3/32	1/4	3/8	1/4	1/16	All dimensions are in inches
	-1/8
20 TO 24	+1/4	3/32		3/32	3/32	1/4	3/8	1/4	1/16
	-3/32

FAQs of Monel 400 Stub End:

Q: How do I select the appropriate grade of Monel 400 Stub End for industrial use?

A: Selecting the right grade depends on your applications medium and environment. Our experts can guide you through various available grades to match your required resistance level and specifications.

Q: What is the process for advance purchase and customization of stub ends?

A: Customers can specify size, grade, and finish requirements during advance purchase. Upon confirmation, customized manufacturing ensures that your order perfectly matches project needs.

Q: When is it advisable to use stub ends made from Monel 400 in piping systems?

A: Monel 400 stub ends are especially recommended when the application media are highly corrosive or where joint flexibility and durability are essential, such as in chemical plants and offshore pipelines.

Q: Where are Monel 400 Stub Ends commonly exported and applied?

A: Our stub ends are exported globally and are frequently deployed in petrochemical, marine, and power generation industries, where their brilliance under pressure is paramount.

Q: What certifications accompany Monel 400 Stub Ends to ensure quality?

A: Each batch includes certifications attesting to compliance with AISI standards and rigorous manufacturing practices, assuring clients of the products reliability and safety.

Q: How does the packaging process protect the stub ends during transit to export markets?

A: Packaging is optimized to safeguard each stub end against damage or corrosion, using durable materials tailored for specific export markets to ensure every product arrives in monumentally pristine condition.
