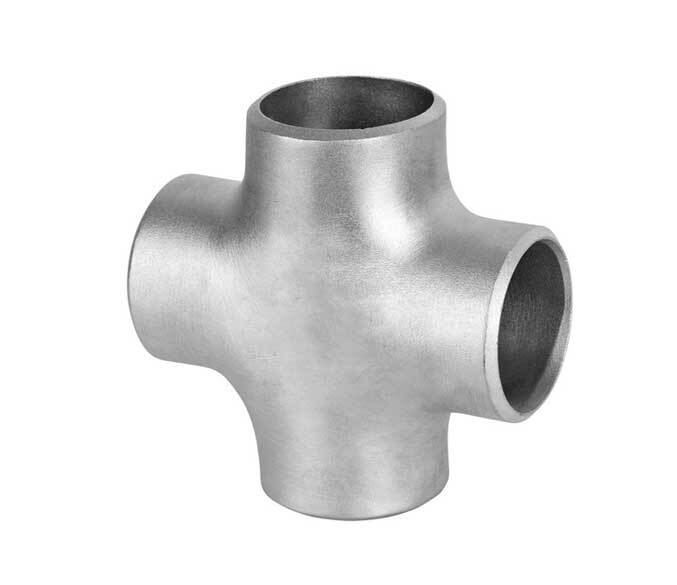

Incoloy 825 Buttweld Cross

Get a Price/Quote

MOQ : 100 Pieces

Incoloy 825 Buttweld Cross Specification

Size
Various Available

Steel Type
Carbon Steel

Grade
Various Grades Available

Steel Standard
AISI

Surface
Polished

Warranty
1 Year

Usage
Industrial

Incoloy 825 Buttweld Cross Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Incoloy 825 Buttweld Cross

Discover the exclusive Incoloy 825 Buttweld Cross, a monumental addition to industrial piping. Engineered following AISI steel standards, this classic connector comes in various grades and sizes, suitable for extensive industrial applications. Made from masterful carbon steel with a polished surface for longevity and appeal, it is available with a 1-year warranty. Whether you are an exporter, manufacturer, supplier, or trader in India, this new deal ensures exceptional durability and corrosion resistance. Secure your operation with this high-quality product at an unbeatable value today.

Extra Features & Specialized Utility

The Incoloy 825 Buttweld Cross stands out with its polished surface, superior corrosion resistance, and adaptability to varied pressure systems. Designed for classic industrial use, it facilitates seamless joining at critical pipeline intersections. Special features include compatibility with various grades and robust construction, ensuring long-term reliability for demanding applications. Its exclusive nature ensures users benefit from precision engineering and a masterful blend of performance and safety, making it an ideal choice for industrial professionals.

Payment Terms & Domestic Dispatch

We offer competitive payment terms for the Incoloy 825 Buttweld Cross, ensuring a smooth transaction process. Shipments are packed with care and dispatched promptly from our main domestic market in India, typically through FOB ports. Each offer is tailored to meet specific customer requirements, facilitating hassle-free logistics. Packing & dispatch procedures prioritize safety, while timely shipments guarantee quick delivery. The process is streamlined to ensure clients receive products efficiently and reliably across domestic regions.

Specification List of Inconel Butt weld Fittings

Standards	ASTM A234 / ASME SA234
Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Size	Seamless Butt Weld Fittings : 1/2 10 Welded Butt Weld Fittings : 1/2 48
Type	Seamless / Welded / Fabricated
Thickness	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Manufacturing Standards of Inconel Buttweld Fittings

ASME B16.9 ASTM A234 AS Fittings	Factory-Made Wrought Buttwelding Fittings	Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
ASME B16.28		Short Radius Elbows, Short Radius 180-deg Returns
MSS SP43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications	Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
MSS SP75		Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers

Inconel Butt weld Fittings Dimensional Tolerances

All Fittings				90and 45 Ells and Tees	Reducers and Lap Joint Stub	Caps	180 Returns			Angularity Tol

Nominal Pipe Plane Size (NPS)	Outside(1) Diameter at Bevel	Inside(1) Diameter at End	Wall(2) Thickness	Centre-to- End Dimension A,B,C,M	Overall Length L	Overall Length E	Centre-to- Centre Dimension O	Back-to- Face Dimension K	Alignment at Ends U	Nominal Pipe SIze	Off Angle Q	Off Angle P
1/2 TO 2-1/2	+1/16	1/32	Not less than 87-1/2% of Normal Thickness	1/16	1/16	1/8	1/4	1/4	1/32	12 to 4	1/32	1/16
	-1/32									5 to 8	1/16	1/8
3 TO 3-1/2	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	10 to 12	3/32	3/16
4	1/16	1/16		1/16	1/16	1/8	1/4	1/4	1/32	14 to 16	3/32	1/4
5 TO 8	+1/32	1/16		1/16	1/16	1/4	1/4	1/4	1/32	18 to 24	1/8	3/8
	-1/16
10 TO 18	+1/16	1/8		3/32	3/32	1/4	3/8	1/4	1/16	All dimensions are in inches
	-1/8
20 TO 24	+1/4	3/32		3/32	3/32	1/4	3/8	1/4	1/16
	-3/32

FAQs of Incoloy 825 Buttweld Cross:

Q: How is the Incoloy 825 Buttweld Cross used in industrial applications?

A: The Incoloy 825 Buttweld Cross is primarily used to connect pipes at intersection points within industrial pipeline systems, ensuring reliable flow distribution and secure joint integrity.

Q: What grades of steel are available for this product?

A: Various grades compliant with AISI steel standards are offered, with each grade tailored for specific industrial requirements, ensuring versatility and compatibility across applications.

Q: When will my shipment be dispatched after placing an order?

A: Orders are packed and dispatched promptly after payment confirmation, with shipments usually routed through major FOB ports to guarantee timely delivery within India.

Q: Where is the main domestic market for this product?

A: The primary domestic market for the Incoloy 825 Buttweld Cross is India, with distribution reaching various industrial sectors throughout the country.

Q: What is the process for securing an export offer?

A: To secure an export offer, simply contact our sales team with your specifications. We provide tailored quotations, customized packing, and coordinate shipment from the designated FOB port.

Q: How does the polished surface benefit usage?

A: A polished surface enhances corrosion resistance, reduces potential contamination, and improves visual appeal, making the product ideal for demanding industrial environments.
